Anwi Systems

SurPASS-3U-4N-6SFF

₹999

Inclusive of taxes

50 Avaliable

SurPASS-3U-4N-6SFF

Enable Implementation of Innovative solutions. The SurPASS-3U-4N-6SFF delivers dashing digital experiences for the users with dynamic responsiveness and performance-driven servers to optimize Software-defined Infrastructure (SDI), Virtual Desktop Infrastructure (VDI), and Hyperconverged Infrastructure (HCI) workloads while taking advantage of dense compute and storage.

Easy plugging into existing enterprise infrastructure with simplified deployment and scalability for organizations to experience the benefits of a platform optimized for computing- and improved storage capabilities.. 3rd Gen Anwi Scalable processors address both evolving computing demands and storage challenges that stop users from scaling large volumes of data.

Effective costs and reduced deployment time, SurPASS-3U-4N-6SFF is designed to run HCI applications and other workloads with ease and efficiency. Advanced data center features and Proven Anwi support

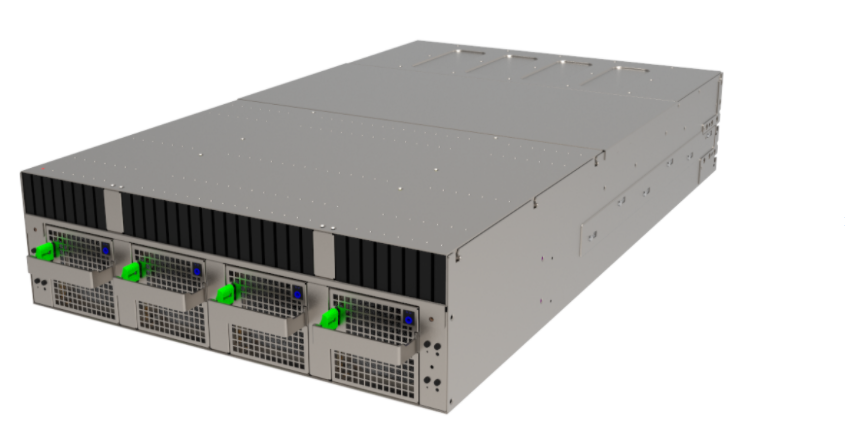

Innovative 3U design enabling SurPASS-3U-4N-6SFF to deliver new levels of efficient performance. Spacious enough upto 1 PB for ultra-high-capacity storage, improving airflow, reducing heat, and enabling greater efficiency.

Unique Features for SDI, VDI, and HCI

Features the latest processor innovation with 3rd Gen Intel^® Xeon^® Scalable processors in dual-socket compute modules. Additionally, Anwi Optane™ persistent memory 200 series enable greater memory capacity versus DRAM only.
Innovative 3U design places ultra-high-capacity storage in the top U to improve airflow and to enable higher performing processors in the bottom 2U for no-compromise CPU performance enabling an HCI platform that delivers breakthrough compute performance and storage capacity. With up to four modules per server, and double the cores of a typical 2U, 4-node configuration for outstanding compute density and headroom. The chassis supports up to four power supplies, which can be configured to provide 2+1 or 2+2 redundancy for greater resiliency.
High-performance NVMe storage provides high-speed, easily scalable storage capacity. Available in U.2 or E1.L form factors.
Delivers ultra-fast I/O through full PCIe 4.0 support. Rapidly move data across nodes with high-speed networking options for fabric or Ethernet PCIe cards. Supports up to 200 Gb network cards.
Advanced, hardware-enhanced security features better protect your data, applications, and infrastructure.
Certified for industry-leading HCI solutions—such as VMware vSAN, and Microsoft Azure Stack HCI—the Anwi Server System D40AMP Family is your fast path to HCI, private and hybrid cloud deployments.

Storage

upto 24 bay storage U.2 NVMe SSDs (6 per node)
Processor

3rd Gen Intel^® Xeon^® Scalable processors up to 205W (air-cooled only)
Memory

DDR4 16x DIMMs & 8x Optane Persistent Memory (BPS) DIMMs per module
Memory Speed

Up to 3200 MHz (2DPC for 2-1-2-1 configurations)
Node-based Storage

2x M.2 80/110mm SATA/NVMe
Hot-Swap Storage

Up to 24x U.2 NVMe SSDs (6 per node)

Up to 32x E1.L NVMe SSDs (8 per node)
Form Factor

3U Rack-Mount enclosure, up to 4 independent warm-swap compute nodes

Power Supply

4x hot-swap CRPS 2100W (Platinum) or 2700W (Titanium) PSUs
Ethernet

Integrated 10Gbase-T RJ45 network & 1Gbase-T RJ45 management per node
Cooling

High-performance Air-Cooling
I/O (per Node)

2 x16 PCIe 4.0 Low-Profile slots
High Speed Network

Up to 200Gb per PCIe card (Ethernet, OPA, Infiniband)
Manageability

Dedicated, consolidated management module
Security

TPM 2.0 (optional); Hot-swap/redundant drives, fans, and PSUs; light path diagnostic LEDs

Model Name	SurPass
Processor	Intel® Xeon® 3rd Gen Scalable Family
Cores	Upto 320 4 Nodes (8 Sockets) X 80 Cores
Storage	Upto 24 bay storage U.2 NVMe SSDs (6 per node)
Form Factor	3U Rack
Memory Storage Capacity	Upto 24 TB

Form Factor	3U Rack-Mount enclosure, up to 4 independent warm-swap compute nodes New 3U Chassis (Vestal Peak) American Pass Board/Node (Modified Tennessee Pass)
Processor	3rd Gen Intel^® Xeon^® Scalable processors up to 205W (air-cooled only)
Memory	DDR4 16x DIMMs & 8x Optane™ Persistent Memory (BPS) DIMMs per module
Memory Speed	Up to 3200 MHz (2DPC for 2-1-2-1 configurations)
Node-Based Storage	2x M.2 80/110mm SATA/NVMe
Hot-Swap Storage	Up to 24x U.2 NVMe SSDs (6 per node) Up to 32x E1.L NVMe SSDs (8 per node)

Power Supply	4x hot-swap CRPS 2100W (Platinum) or 2700W (Titanium) PSUs
Ethernet	Integrated 10Gbase-T RJ45 network & 1Gbase-T RJ45 management per node
Cooling	High-performance Air-Cooling
I/O (per Node)	2 x16 PCIe 4.0 Low-Profile slots
High Speed Network	Up to 200Gb per PCIe card (Ethernet, OPA, Infiniband)
Manageability	Dedicated, consolidated management module
Security	TPM 2.0 (optional); Hot-swap/redundant drives, fans, and PSUs; light path diagnostic LEDs
